xRC-3363
High-Voltage Hybrid Vehicle Rescue Charger
xRC-3363 Rescue Charger represents the third generation of Midtronics EV/HEV battery service tools, enabling technicians to quickly, efficiently and safely jumpstart hybrid vehicle high voltage batteries.
- Charges hybrid vehicle high voltage batteries to a state of charge capable of turning over vehicle engine
- Easy user interface and on-screen prompts guide accurate service
- Compact footprint for more mobility within the shop
xRC-3363 SELECTED FEATURES
Specifications
- Max Voltage: 336 Volts
- Charging Current: 3 Amps
Ease of Use

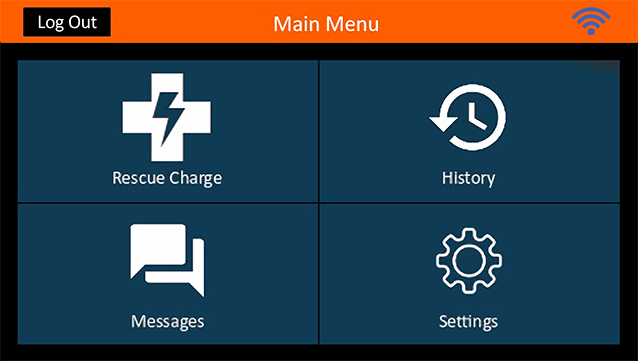

- 5” color touchscreen with navigational pad
- Ability for on screen guided cable connections
- Consistent user interface across xEV platforms
Safety
- Cell voltage/Pack temp monitoring during charge
- Finger safe connections for all cables
Connected
- WiFi/Bluetooth connected
- Ability to send data regarding service with BMIS connection xRC-3363
Battery Management Processes
Midtronics products are designed to meet a variety of battery and electrical system service requirements, but selected features on individual products may make them a better fit for your unique service applications. This product is particularly well-suited for these battery management processes:
Primary Uses
HEV Battery Rescue Charge
KEY PRODUCT DIFFERENTIATOR
Rescue Charge to get customer vehicles back on the road faster
Rescue charge in hybrid vehicles is performed when a HV battery state of charge is too low to turn over the engine, a common scenario when technicians are working to diagnose vehicle issues. The xRC-3363 acts as a jump start to recharge the HV battery to a point where it can turn over the engine. These extra crank attempts allow technicians to identify issues so the vehicle can be repaired and returned to the road.
xRC Cart:
- Compact, mobile cart for storage of xRC when not in use and easy maneuverability to vehicle when needed
- Cable management brackets store all connection cables
- Large wheels to navigate common obstacles in a shop environment
Analytics and Communication
- BMIS integration supports automated over-the-air software updates and analytical reporting
- Capture and review battery testing data
- Visibility into process compliance
- E-mail results via built-in Wi-Fi
DIMENSIONS
- Height: 9.37” in (23.8 cm)
- Width: 16,78 KG (37 LBS)
CONNECTIVITY
- Wi-Fi
-
Bluetooth 2.0
-
USB 2.0 connection
-
CAN bus interface
Power
-
Input: 100 – 240 , 50/60 Hz; 12A max.
Output: 336 V , 3A
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Midtronics works closely with individual customers to develop custom xRC-3363 solutions. Please contact your Midtronics account manager for more information.

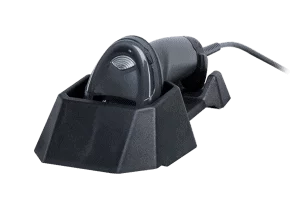

A774
- Barcode scanner

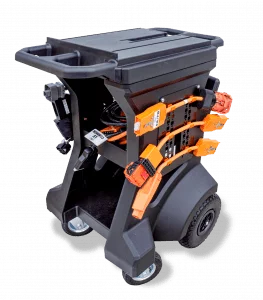

A741
- Cart
